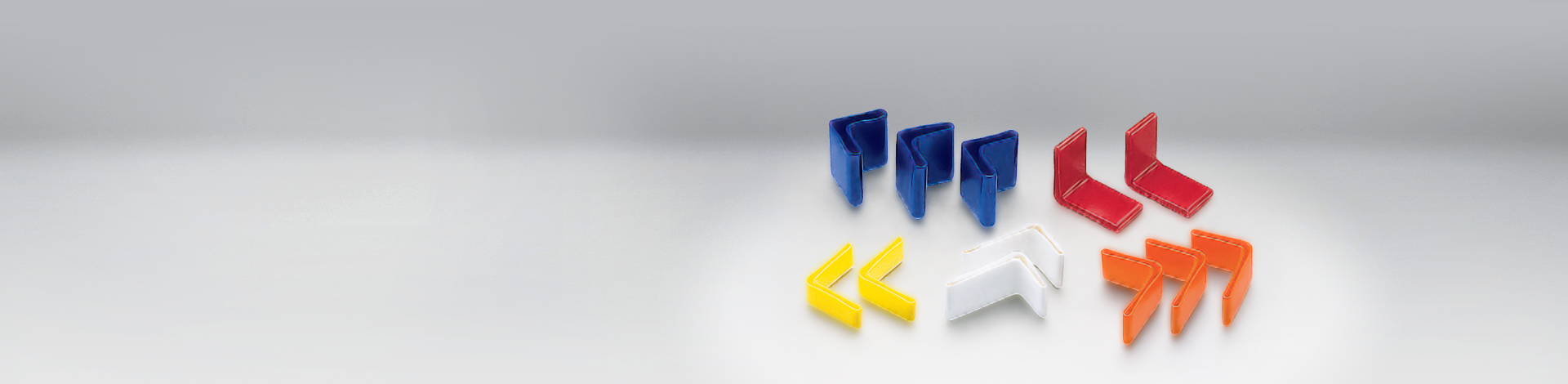

The complete line of Angle Caps is molded from tough vinyl plastisol for easy application and a snug fit. They stay put and won’t crack or split. Standard options are shown below, but these Angle End Caps are not stocked and are not available for online purchase. Please call for additional information and samples, or submit the Quote/Samples form.
Step 1 — Choose a Length (A & B)
Step 2 — Choose a Max Inside Length (C)
Angle End Caps
| Inside Dimension “A” | Inside Dimension “B” | Max Inside Length “C” | Nominal Wall Thickness “D” | Inside Dimension “E” |
|---|---|---|---|---|
| 1.500 | 1.750 | 1.500 | 0.060 | 0.105 |
| 1.750 | 1.500 | 1.500 | 0.060 | 0.105 |
| 1.750 | 1.375 | 1.500 | 0.065 | 0.110 |
| 1.500 | 1.500 | 1.000 | 0.070 | 0.110 |
| 1.375 | 1.750 | 1.500 | 0.065 | 0.110 |
| 1.250 | 1.250 | 1.500 | 0.060 | 0.125 |
| 1.250 | 1.250 | 1.500 | 0.060 | 0.250 |
Step 3 — Choose a Color
Caps are manufactured in 8 standard colors for multiple materials. Custom colors are also available.
Standard
Custom
Step 4 — Choose a Material
Angle Caps are made from a 75 durometer PVC with a smooth surface and glossy finish. However, these caps can be made in materials with a variety of characteristics and features as shown below.
Material Characteristics
1. Hardness
2. Gloss
3. Texture
4. Special Features
-
High Temperature Resistant -
Highly Weather Resistant -
Fire Resistant (UL Qualifiable) -
Anti-Static -
Dilatable
Step 5 — Add Further Customization
At StockCap, our service extends beyond molding protective caps, plugs and covers to include a variety of finishing and packaging options. We have an entire facility set up to print, punch, package and more so that your team can focus on what you do best.
