StockCap FC Flange Covers are designed for quick and simple application. They provide a snug fit and conform to a wide variety of flanged and beaded tubes.
Features
- Increased safety from leaking connections
- Easy to dissemble for maintenance
- Reusable and won’t crack or split
- Resists weather, moisture and chemicals
- Cushions against abrasive contact
- Resists warping, swelling, tearing or splitting
- Shipped immediately from stock (in Yellow)
Applications
- Flanges, valves and joints
- Paint masks
- Pipes and vessels
Step 1 — Choose an Inside Diameter (A)
FC Flange Covers

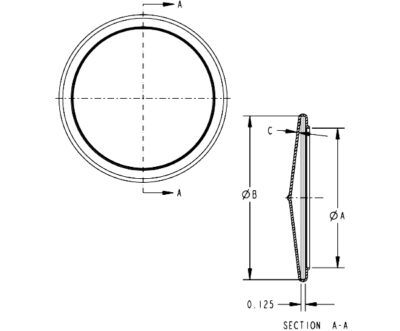

| Part Name | Inside Diameter “A” (in) | Inside Diameter “B” (in) |
|---|---|---|
| FC-068 | 0.680 | 1.310 |
| FC-093 | 0.930 | 1.550 |
| FC-100 | 1.000 | 1.620 |
| FC-131 | 1.310 | 1.930 |
| FC-150 | 1.500 | 2.195 |
| FC-200 | 2.000 | 2.695 |
| FC-218 | 2.180 | 2.860 |
| FC-250 | 2.500 | 3.180 |
| FC-293 | 2.930 | 3.560 |
| FC-300 | 3.000 | 3.600 |
| FC-350 | 3.500 | 4.155 |
| FC-400 | 4.000 | 4.690 |
| FC-425 | 4.250 | 4.940 |
| FC-450 | 4.500 | 5.190 |
| FC-475 | 4.750 | 5.440 |
| FC-500 | 5.000 | 5.690 |
| FC-525 | 5.250 | 5.940 |
| FC-550 | 5.500 | 6.190 |
| FC-600 | 6.000 | 6.690 |
| FC-650 | 6.500 | 7.190 |
Step 2 — Choose a Color
Flange Covers are manufactured in 8 standard colors for multiple materials. Certain popular sizes are also stocked in yellow for quick shipment. Custom materials are also available.
Stock
yellow
Standard
black
red
orange
green
blue
gray
white
Custom
Step 3 — Choose a Material
Stocked FC Flange Covers are made from a 75 durometer PVC with a smooth surface and glossy finish. However, these flange protectors can be made in materials with a variety of characteristics and features as shown below.
Material Characteristics
1. Hardness
2. Gloss
3. Texture
4. Special Features
-
High Temperature Resistant -
Highly Weather Resistant -
Fire Resistant (UL Qualifiable) -
Anti-Static -
Dilatable
